Multi-functional Relay

Product Characteristics

Change your traditional curtains into smart

Purchase

Product details

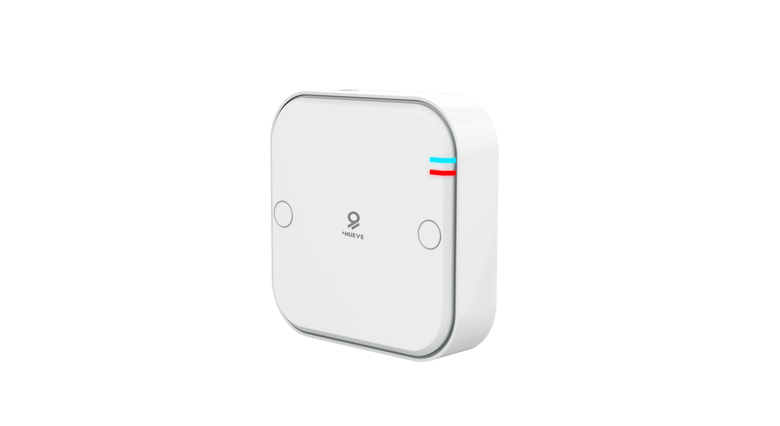

Overview ZigBee multi-functional relay is designed to control to motors of railway curtain, electric window, garage door and garden irrigation devices. The ZigBee multi-functional relay
communicates with the ZigBee hub and receive zigbee control signal. With the multi-functional relay, users can open or close railway curtain, electric window, garage door and
garden irrigation devices by HomeMate App on the smartphone.

Features Three working modes: high voltage mode, low voltage mode, power relay mode
ZigBee automatic networking technology, no need to pair codes, easy to use
Support making scenes
Power off memory function. No need to access ZigBee network again when power is off
Mesh networking. Transmitting data over long distances by passing data through a mesh network of intermediate devices to reach more distant ones.Work as Zigbee signal repeater.

Specification Model No.: MFR10

Size: 70*70*23mm(L*W*H)

Power supply: AC100V～240V

Max load current: 5A

Working frequency: 2.4GHz

Wireless Transmit power: 20dBm

Static power consumption: ＜0.1W

Wireless receiving sensitivity: ≥-90dBm

Protocol: ZigBee HA

Networking mode: ZigBee automatic networking

Encryption: AES128

Distance: no limit
