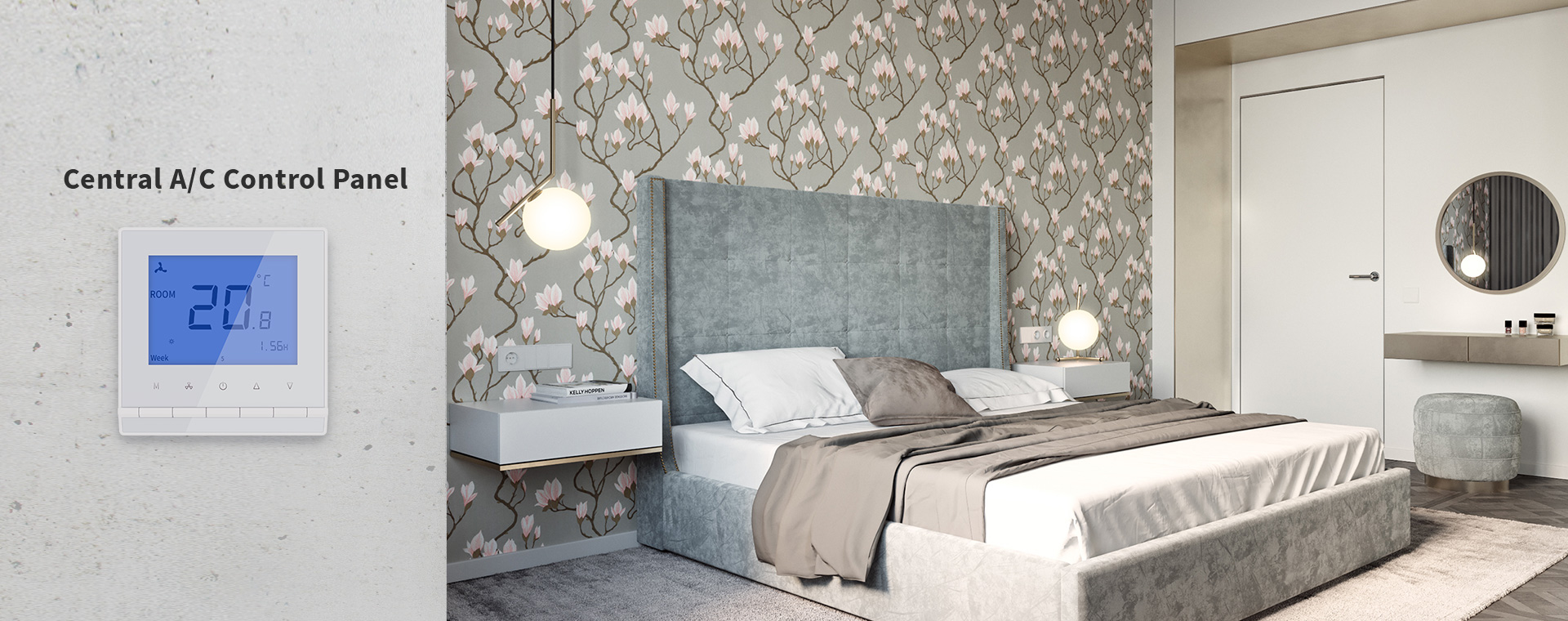

Central A/C Control Panel

Product Characteristics

Purchase

Product details

Overview Working with ZigBee smart hub, you can freely control the Central A/C Panel on the smart phone, remote control the central air conditioning units via the HomeMate App, and set up
the time to turn on it before you coming home. It supports modes of cooling, heating, ventilation, etc. ( Depend on AC systems), and Able to adjust temperature from 10℃ to 30℃.

Features Adopt high-performance SCM, precise calculation logic, stable performance, and strong anti-interference.
128 bit AES communication encryption, safe and reliable, widely apply to office, hotel, theater, hospital, etc.
With mounting plate, it is easy to install by self; Support smart phone control and also off-line control.
Support most of the existing center A/C of Fan coil type .

Specification Model NO.: CAC10W

Size: 86*86*15mm

Communication Distance:<200ft

Voltage: 100-240VAC,50/60Hz

Current Load: 1A（Inductive Load），2A（Resistive load）

Temperature Range: 10℃~30℃

Control Precision: ±1℃

Wireless Frequency: 2.4GHz，IEEE 802.15.4

Wireless Protocol: ZigBee HA

Included Central A/C Control Panel x 1

Power Box x 1

Mounting Plate x 1
